CB-B Series Low-pressure Gear Pump
Type: CB-B
Present point: 0
Point offset: 0.0
Detail
Review(0)

CB-B Series Low-pressure Gear Pump


It  is a conversion equipment. It can convert the mechanical energy to liquid pressure energy by a pair joggled gears;to

provide a certain discharge pressure in the machine bed or other machine.


Flow range:2.5-125 L/min

Operation temperature:10-60degree centigrade

Matched Power:0.13-8.2kw

Working pressure:2.5Mpa

Speed:1450RPM



Specification:

ModelRated    Flow   rate

Rated     Pressure

Rated  speedVolume efficiencyTotal  efficiency

Pressure

fluctuation

Noise  valueDriving   powerWeight
L/minMPar/minηv%ηt%DBKwKg
CB-B10102.51450≥90≥63±1.562~650.513.5
CB-B1616≥720.825.2
CB-B20201.025.4
CB-B2525≥94≥811.35.5
CB-B323267~701.656
CB-B40402.110.5
CB-B50502.611
CB-B6363≥853.311.8
CB-B8080≥9574~774.517.6
CB-B1001005.118.7
CB-B125125≥906.519.5
CB-B16016080~838.230
CB-B200200≥8610.134
CB-B2502501336

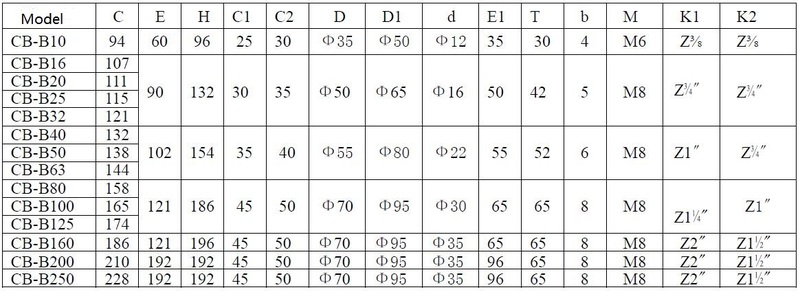

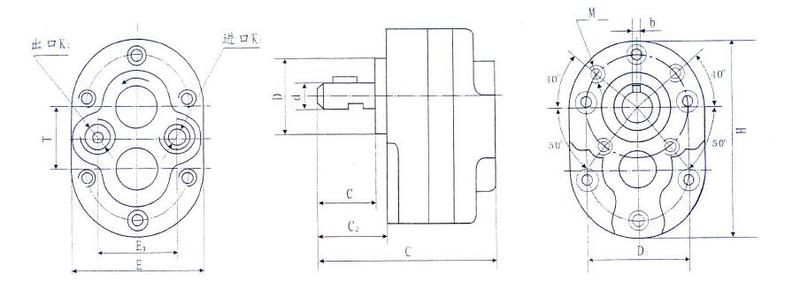

CB-B Series Low-pressure Gear Pump SIZE

CB-B10,CB-B16,CB-B20,CB-B25,CB-B32,CB-B40,CB-B50,CB-B63,CB-B80,CB-B100,CB-B125,CB-B160,CB-B200 size
