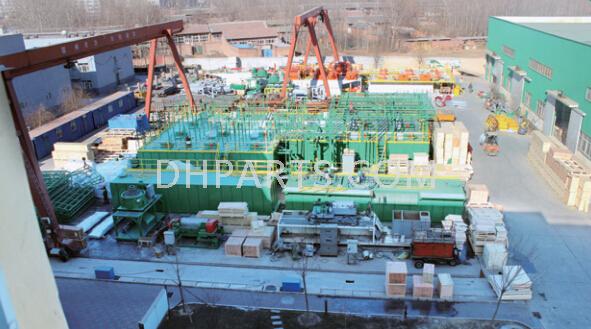

![]() Solid Control System for Oil & Gas Industry
Solid control system contains five stages: the mud tank, shale shaker, vacuum degasser, desander, desilter, and centrifuge. The shale shaker is used to separate big solids with diameter above 75μm, the desander addresses solids from 45-74μm, and the desilter segregates solids between 15-44μm. Sometimes the desander and desilter are combined as one high efficiency mud cleaner. When air enters the drilling fluids, a vacuum degasser is used to separate the air. When there is no air in the mud, the degasser works as a big agitator. All these stages are mounted on the top of the mud tank. After separating the solids, the clean mud can be pumped into the borehole again. |
