Amalgamate hopper ZPH150

  1116
Issuing time:2016-01-09 12:40

Mud hopper is used to quickly mix drilling fluid and its additives. The additives of drilling fluid,such as barite powder, bentonite, salt,slurry and chemical additives,will be homogeneously mixed with drilling fluid before entering the drilling fluid system, which can improve the quality and reduce the consumption of drilling fluid, fully play the function of additives,save the cost of slurry,accelerate feeding and strengthen the mixing capability

 Mixing Funnel/Hopper,MUD HOPPER ZPH150


Specifications

Inlet drainage  180m 3/h

Inlet head  >=31m

Diameter of funnel  705mm

Diameter of inlet  125mm

Diameter of outlet 150mm

Jet speed  45m/s

Motor powe of mixing pump  55kw

Amalgamate speed  Not lower than 300kg/min for barite; not lower than 150kg/min for bentonite

Outline dimensions.1518*708*989mm

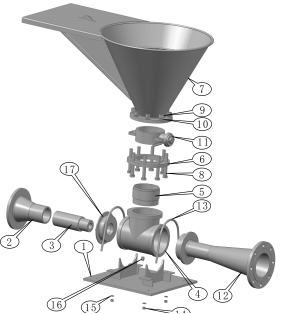

Mud hopper spare parts

No.

Part Name

Part No.

Qty

No.

Part Name

Part No.

Qty

1

Bottom plate

ZHP150001

1

10

Washer

ZHP150010

8

2

Reducer

ZHP150002

1

11

Butterfly valve

ZHP150011

8

3

Jet

ZHP150003

1

12

Horn

ZHP150012

1

4

Tee

ZHP150004

1

13

U type bolt

ZHP150013

2

5

Connection Sleeve

ZHP150005

12

14

Nut

ZHP150014

2

6

Flange

ZHP150006

12

15

Washer

ZHP150015

2

7

Hopper

ZHP150007

12

16

Plug

ZHP150016

1

8

Bolt

ZHP150008

8

17

Connection Plate

ZHP150017

1

9

Nut

ZHP150009

8
